Hi there! If you’re new to viscous dampers and stuck deciding between linear and rotary types, you’re not alone. Both use fluid resistance to control motion, but they’re designed for distinct movement paths—understanding this (plus your project’s needs) is the key to spec’ing correctly. Below is a clear, actionable guide to help you choose, with no technical jargon overload.
First: The Core Difference (Linear vs. Rotary Viscous Dampers)
Let’s start with the basics—how each damper works and the motion they control:
| Feature | Viscous Linear Damper | Viscous Rotary Damper |
|---|---|---|
| Motion Controlled | Straight-line (back-and-forth, e.g., sliding) | Rotational (spin/hinge, e.g., opening/closing) |
| Key Performance Metric | Damping force (N) – resistance to linear motion | Damping torque (N·m) – resistance to rotation |
| Typical Design | Cylinder with a sliding rod (filled with silicone/mineral oil) | Housing with a rotating shaft (oil-filled chamber) |
In short: If your project needs to control sliding motion, go linear. If it’s hinge/rotational motion, go rotary.
Step 1: Analyze Your Project’s Motion Requirements
The first question to ask: What type of motion do you need to control? Let’s break this down with real-world examples to make it concrete:
When to Choose a Viscous Linear Damper
Linear dampers excel at smoothing straight-line movement. Opt for this if your project involves:
- Sliding components: Drawers, sliding doors, telescopic handles, or linear actuators.
- Vertical/horizontal translation: Adjustable standing desk columns, sliding storage trays, or medical bed rails (moving up/down/side-to-side).
- Shock absorption: Reducing impact from sliding parts (e.g., a heavy equipment drawer that needs to slow down before closing).
Example: If you’re building a custom sliding pantry door (20kg, sliding speed ~150mm/s), a linear damper with 25–30N damping force will prevent it from slamming shut while keeping it easy to open.
Viscous linear damper installed in a sliding pantry door to control smooth motion.
When to Choose a Viscous Rotary Damper
Rotary dampers shine for rotational/hinged motion. Choose this if your project involves:
- Hinged components: Cabinet lids, toy hinges, automotive armrests, or equipment access panels.
- Rotating parts: Camera lens covers, fold-down desk tops, or lid-based storage containers.
- Controlled closing: Any part that opens and closes via rotation (e.g., a trash can lid, oven door, or RV compartment door).

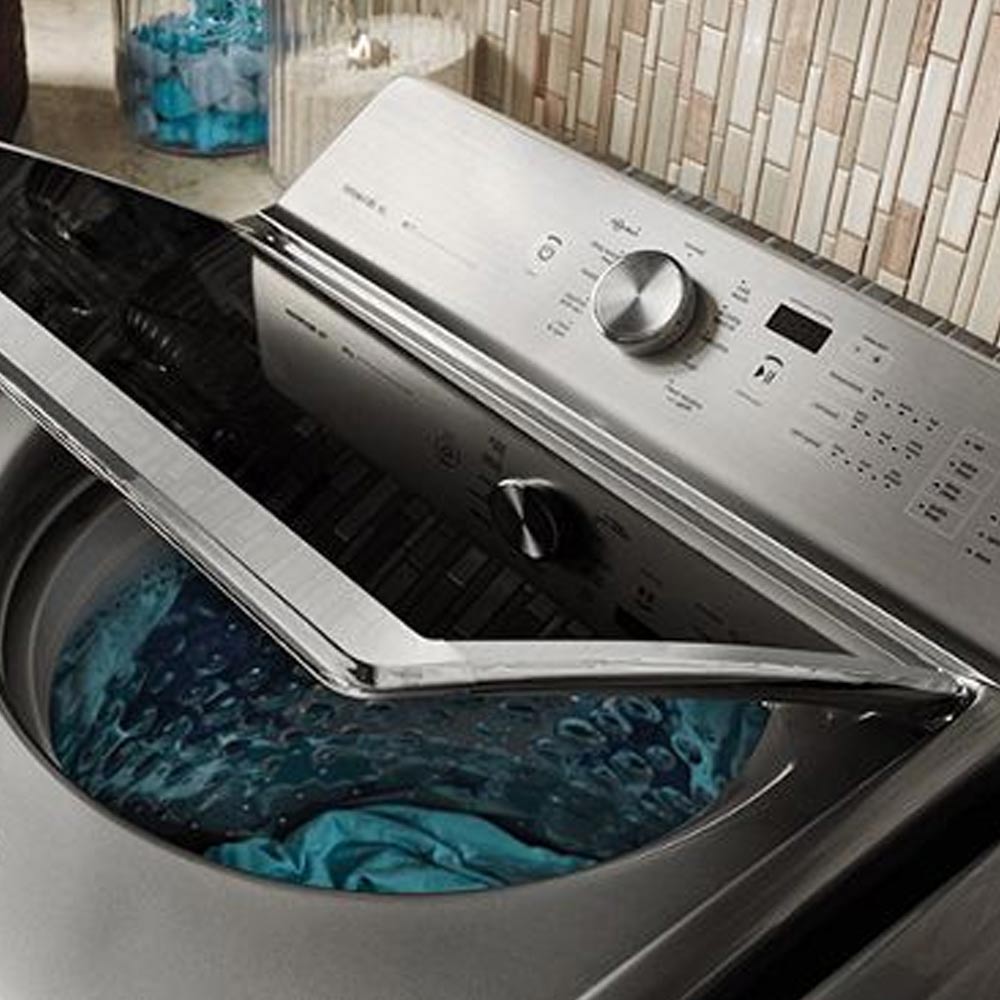

Example: For a 3kg washer glass cover, a rotary damper with 5 N·m torque will let it glide closed slowly (2–7 seconds) without slamming—protecting the lid and hinges.
Viscous rotary damper integrated into a cabinet hinge for smooth, silent closing.
Step 2: Key Factors to Refine Your Choice
Once you’ve matched the damper type to your motion, use these factors to narrow down the spec:
1. Load & Resistance (Critical for Performance)
- Linear: Calculate the total load (kg) of the sliding component. Choose a damper with damping force that’s 10–20% higher than the load’s inertial force (e.g., 20kg sliding door = ~25N force).
- Rotary: Use the torque formula ( T = (W \times g) \times (L/2) ) (W=load kg, L=length of rotating part m) to find required torque. Add 10% buffer (e.g., 5kg lid, L=0.4m = ~9.8 N·m → choose 10–12 N·m).
2. Space Constraints
- Linear: Requires room for the cylinder and rod’s full stroke (e.g., a 150mm stroke damper needs 150mm of clearance when extended).
- Rotary: Compact—ideal for tight spaces (e.g., small hinges or narrow cabinet frames) since they don’t require linear clearance.
3. Environmental Conditions
Both dampers work in -20°C to 60°C (standard range), but:
- If your project is outdoors or in humid areas (e.g., bathroom), choose sealed models (prevents oil leakage and corrosion).
- For high-heat applications (e.g., near engines), opt for silicone oil dampers (more heat-stable than mineral oil).
4. Durability Needs
- Light use (e.g., a home cabinet lid opened 5x/day): 10,000–30,000 cycle rating.
- Heavy use (e.g., industrial equipment access panel opened 50x/day): 50,000+ cycle rating.
Most manufacturers list cycle life—match this to your project’s expected usage.
Step 3: Pro Tips for First-Time Specifiers
- Start with samples: Order 2–3 damper models (with slightly different force/torque ranges) to test in your project—this avoids over-spec’ing (a common mistake!).
- Avoid overcomplicating: If motion is purely sliding or rotational, stick to one type—no need for hybrid solutions unless your project has both (rare for first-time users).
- Ask manufacturers for help: Share your project’s motion, load, and space details—most suppliers will recommend a starter model to test.
Final Decision Checklist
✅ 1. Identify motion type (sliding = linear; rotational = rotary).
✅ 2. Calculate required force/torque (use the formulas above).
✅ 3. Confirm space/clearance fits the damper’s design.
✅ 4. Match cycle life and environmental rating to your needs.
By following this, you’ll move from “uncertain” to “confident” in choosing the right viscous damper. Remember: The goal is to control motion smoothly without making the component hard to operate—balance is key!
