Gas Spring Mechanism
If you’ve ever lifted a car trunk with one hand, adjusted an office chair to your height, or opened a heavy RV cabinet effortlessly—you’ve experienced the power of a gas spring mechanism. This compact, versatile component is everywhere, yet few people stop to appreciate how it simplifies daily tasks and enhances product performance.
In this blog, we’ll break down what a gas spring mechanism is, how it works, its key benefits, common applications, and what to consider when choosing the right one for your project. Whether you’re an engineer, product designer, or simply curious about the tech behind everyday objects, this guide will turn you into a gas spring expert.
What Is a Gas Spring Mechanism?
At its core, a gas spring (also called a gas strut or gas cylinder) is a mechanical component designed to provide controlled force, motion, or support. Unlike traditional coil springs (which rely on metal tension), gas springs use compressed gas (typically nitrogen) and a piston to generate smooth, consistent force—making them ideal for applications where gentle, predictable movement matters.
A standard gas spring consists of four key parts:
- Cylinder: A sealed tube that holds the compressed gas.
- Piston: A moving component inside the cylinder that separates the gas chamber from a smaller oil chamber (for damping).
- Rod: Connected to the piston, it extends/retracts to control movement (e.g., lifting a lid or lowering a seat).
- End fittings: Hardware (like ball joints or fixed mounts) that attach the gas spring to the product (e.g., a trunk lid or chair frame).
Anatomy of a standard gas spring (cylinder, piston, rod, and end fittings)
How Does a Gas Spring Mechanism Work?
The magic of gas springs lies in their simplicity and precision. Here’s a step-by-step breakdown of their operation:
- Stored Energy: The cylinder is pre-filled with compressed nitrogen gas, creating internal pressure. This pressure pushes against the piston, keeping the rod in an extended (or “supported”) position by default.
- Controlled Movement: When force is applied (e.g., pushing down a car trunk), the rod compresses into the cylinder. The piston squeezes the gas, increasing pressure—but a small oil chamber in the cylinder acts as a damper, slowing the movement to prevent sudden, jarring motion.
- Smooth Support: When the applied force is released (e.g., lifting the trunk), the compressed gas pushes the piston back, extending the rod and lifting the load effortlessly. The oil damper ensures the movement stays steady—no “bounce” or sudden lurching.
This design makes gas springs far more versatile than coil springs: they can hold loads in place (e.g., keeping a cabinet door open), control speed (e.g., soft-closing a lid), or reduce the effort needed to lift heavy objects (e.g., a truck tailgate).
Key Benefits of Gas Spring Mechanisms
Why choose a gas spring over other mechanical solutions? Here are the top advantages that make them indispensable across industries:
1. Effortless Operation
Gas springs reduce the force needed to move heavy loads—turning a 50lb trunk lift into a one-hand task. This improves user comfort and accessibility (critical for products used by people of all strength levels).
2. Smooth, Quiet Motion
Unlike coil springs (which can creak or bounce) or hydraulic systems (which are often noisy), gas springs operate silently and with zero vibration. This is a game-changer for applications like medical beds, office furniture, or luxury car interiors.
3. Safety First
Gas springs prevent sudden, uncontrolled movement. For example:
- A soft-closing gas spring on a RV refrigerator door keeps it from slamming shut (protecting contents and fingers).
- A locking gas spring on a hospital bed holds the mattress at a fixed angle, ensuring patient safety.
4. Durability & Low Maintenance
Sealed gas springs are resistant to dust, moisture, and wear—they can last for thousands of cycles without needing lubrication or repairs. This makes them ideal for outdoor or high-use products (e.g., marine hatches, industrial machinery).
5. Compact Design
Gas springs deliver high force in a small package. Unlike bulky coil springs or hydraulic cylinders, they fit into tight spaces—perfect for modern, sleek product designs (e.g., slim office chairs, compact kitchen appliances).
Common Applications
Gas springs are used in nearly every industry—here are some of the most common use cases to illustrate their versatility:
| Industry | Application Examples |
|---|---|
| Automotive | Car trunks, hoods, seat adjustments, convertible tops, glove box lids |
| Furniture | Office chair height adjustment, recliner mechanisms, cabinet soft-close doors |
| Recreational Vehicles (RVs) | Camper hatches, slide-out room supports, refrigerator doors, bed lifts |
| Medical | Hospital bed positioning, wheelchair armrests, exam table adjustments |
| Industrial | Machinery access panels, conveyor belt tensioners, heavy equipment lids |
| Home Appliances | Oven doors, washing machine lids, smart toilet seats (soft-close) |
Gas springs supporting a car trunk for easy, one-hand operation
How to Choose the Right Gas Spring Mechanism
Not all gas springs are created equal—here’s what to consider to ensure a perfect fit for your project:
1. Force Requirement (Newtons/N)
This is the most critical factor: the gas spring must generate enough force to support or move your load. Calculate the weight of the object (e.g., a trunk lid) and choose a spring with a force rating that matches (add 10-20% for safety).
2. Stroke Length
The “stroke” is how far the rod extends/retracts. Measure the distance the object needs to move (e.g., from a closed to open position) and select a stroke length that matches.
3. End Fittings
Choose fittings that align with your product’s mounting points (e.g., ball joints for swiveling motion, fixed pins for static support). Mismatched fittings can cause instability or premature wear.

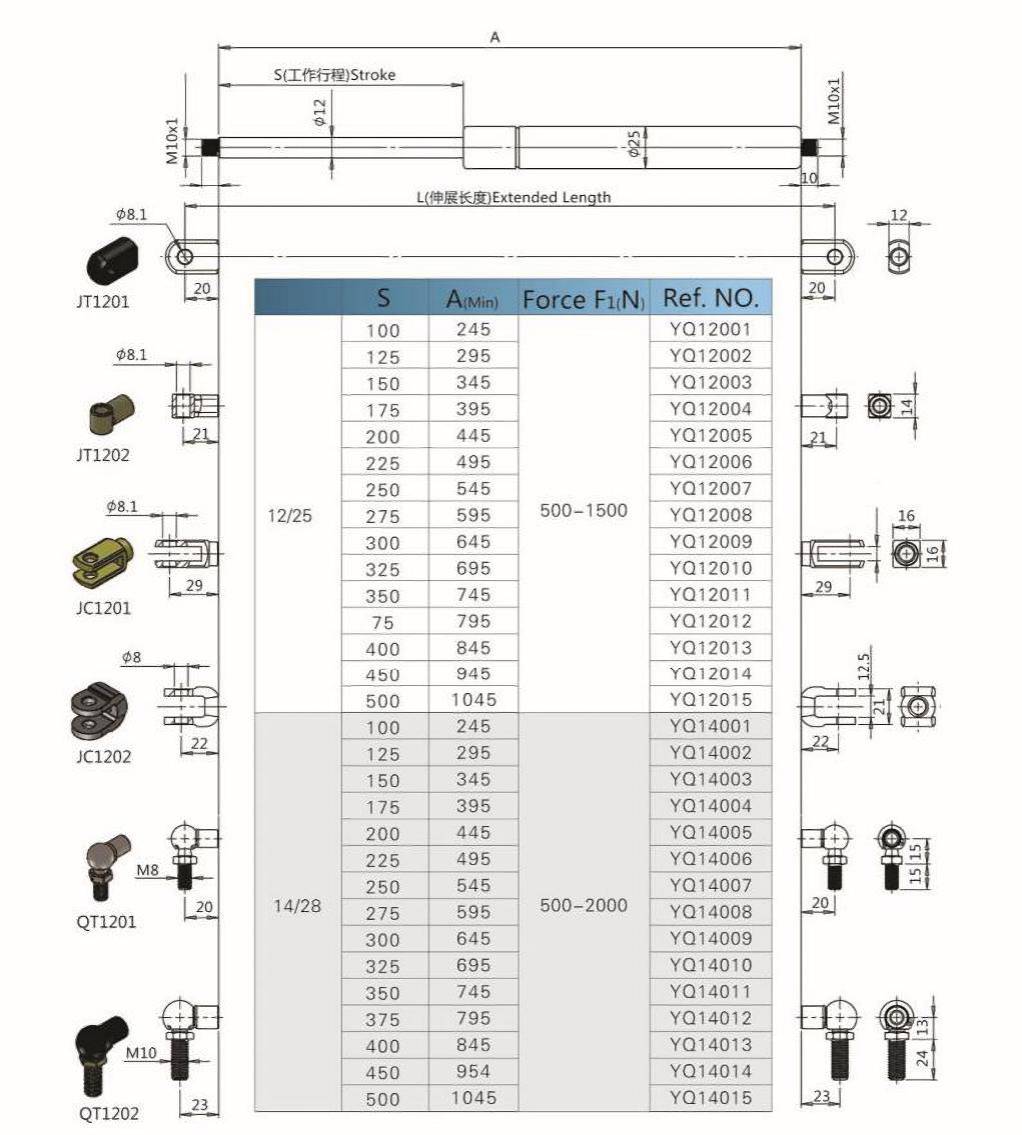

Gas spring end fittings catalog
4. Environmental Factors
- Temperature: If the spring will be exposed to extreme heat (e.g., engine bays) or cold (e.g., outdoor equipment), choose a model rated for those conditions.
- Corrosion Resistance: For marine or outdoor use, opt for stainless steel or coated cylinders to prevent rust.
5. Damping Needs
Do you need soft-closing (slow, gentle movement) or just support? Some gas springs include adjustable damping to fine-tune motion—ideal for applications like furniture or medical equipment.
Final Thoughts:
Gas spring mechanisms may not be the first thing you notice in a product, but they’re the reason so many everyday objects feel intuitive, safe, and high-quality. From reducing physical strain to enabling sleek, space-saving designs, they’re a cornerstone of modern engineering.
Whether you’re designing a new product, upgrading an existing one, or simply troubleshooting a finicky mechanism—understanding gas springs is key to building better, more user-friendly solutions.
💡 Need help selecting the right gas spring for your project? Start by defining your load, stroke, and environmental needs—and look for a partner who prioritizes customization over one-size-fits-all.
