Linear dampers play a crucial role in various engineering applications, from automotive systems to industrial machinery. Ensuring their quality is of utmost importance to guarantee the smooth operation and safety of the overall system. In this blog, we will explore the key testing methods to ensure the high - quality performance of linear dampers.

1. Static Load Testing

The first step in evaluating a linear damper's quality is static load testing. This involves applying a constant force to the damper and measuring its displacement. 📏

  • Test Setup: Secure the linear damper in a test fixture. Connect a load - applying device, such as a hydraulic or mechanical actuator, to one end of the damper. Use displacement sensors to accurately measure the movement of the damper under the applied load.
  • Expected Results: A high - quality linear damper should exhibit a predictable and linear relationship between the applied load and displacement within its designed operating range. Deviations from this linear behavior could indicate internal damage, such as a stuck piston or a malfunctioning valve.

2. Dynamic Load Testing

Dynamic load testing simulates the real - world operating conditions of the linear damper more closely. It involves applying varying loads at different frequencies. ⚙️

  • Test Procedure: Use a servo - hydraulic or electromechanical test system to apply cyclic loads to the damper. The load profile can be designed to mimic the typical forces the damper will experience in its actual application. Measure parameters such as force, displacement, and velocity during the test.
  • Analysis: Analyze the force - displacement and force - velocity hysteresis loops. A well - designed linear damper will have consistent and repeatable hysteresis loops. Any irregularities in these loops may suggest problems with the damper's damping characteristics, such as inconsistent fluid flow or worn - out components.

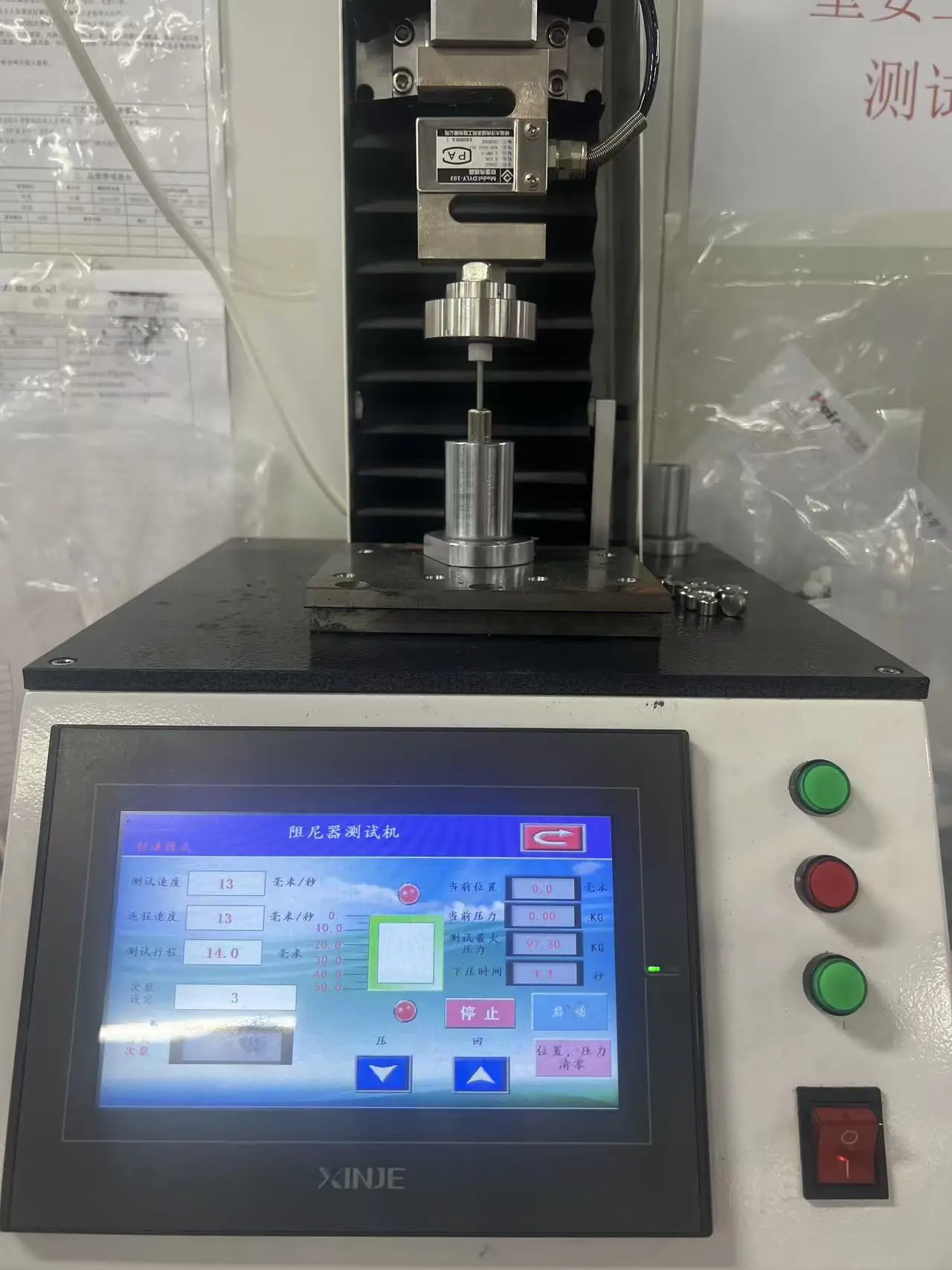

    Linear damper test machine

3. Leakage Testing

Leakage of the damping fluid can significantly affect the performance of a linear damper. Therefore, leakage testing is an essential part of the quality assurance process. 🚰

  • Visual Inspection: Conduct a visual inspection of the damper for any signs of fluid leakage around the seals, piston rod, and other connections. Look for wet spots, drips, or stains on the damper housing.
  • Pressure Testing: Apply a pressure higher than the normal operating pressure to the damper and monitor for any pressure drop over time. A significant pressure drop indicates a leak in the system, which needs to be addressed before the damper can be considered of high quality.

4. Temperature Testing

Linear dampers may operate in a wide range of temperatures. Temperature testing helps to ensure that the damper performs consistently across different temperature conditions. 🌡️

  • Test Environment: Place the damper in a temperature - controlled chamber. Subject it to extreme low and high temperatures that are within the expected operating range.
  • Performance Evaluation: Conduct static and dynamic load tests at different temperatures. Compare the performance of the damper at various temperatures. A good quality damper should maintain its damping characteristics and mechanical properties regardless of the temperature changes.

5. Endurance Testing

Endurance testing is used to evaluate the long - term performance and durability of the linear damper. 🏃‍♂️

  • Test Duration: Run the damper through a large number of load cycles, often in the range of hundreds of thousands or even millions of cycles, depending on the application requirements.
  • Monitoring: Continuously monitor the damper's performance parameters during the endurance test. Look for any signs of degradation, such as increased friction, reduced damping force, or leakage. If the damper can withstand the specified number of cycles without significant performance deterioration, it can be considered to have high quality.

By following these comprehensive testing methods, manufacturers and users can ensure that linear dampers meet the required quality standards and provide reliable performance in their intended applications. 👍
