How We Partnered to Deliver the PR-T118 Rotary Damper

Rotary Damper

When clients come to us seeking a rotary dampers that balances torque accuracy, durability, and seamless integration, one size never fits all. Recently, we collaborated with a client working on a motion control project—they needed a solution that could handle specific rotational demands, stay reliable through heavy use, and adapt to varying environmental conditions. After diving into their needs, we landed on the PR-T118 spiral rotary dampers—a product engineered to meet strict technical standards and tailored to their unique requirements. Let’s walk through how our partnership unfolded and why the PR-T118 became the perfect fit.

The Client’s Challenge: Specific Needs for Rotational Control

Our client’s project centered on a component requiring controlled, smooth closing motion—with non-negotiable demands:

  • A damper that supported both clockwise (CW) and counterclockwise (CCW) torque, depending on the assembly.
  • Consistent closing time to ensure user safety and product longevity.
  • Durability to withstand thousands of cycles without performance drop.
  • Compatibility with both everyday operating temps and short-term storage in extreme conditions.

They’d previously struggled with off-the-shelf dampers that either failed to match their torque range or couldn’t handle repeated use. Our goal was to cut through guesswork, align with their technical specs, and deliver a solution that worked from day one.

Step 1: Deep Dive into Technical Requirements to Narrow the Scope

First, we worked closely with the client to map their must-have specs—turning vague needs into concrete parameters. Here’s how we aligned their goals with the PR-T118’s capabilities:

Torque Direction & Range: Matching CW/CCW Needs

The client needed flexibility: some assemblies required clockwise torque, others counterclockwise. The PR-T118’s dual variants solved this:

  • PR-T118-R: Designed for clockwise (CW) torque, ideal for their right-oriented assemblies.
  • PR-T118-L: Built for counterclockwise (CCW) torque, fitting left-oriented setups.

We also confirmed their torque range requirement (1.5–4 N·m) aligned perfectly with the PR-T118’s rated torque of 153~403 (equivalent to 1.5×10³ to 4×10³ gf.cm)—covering every variant they needed for different load levels.

Closing Time: Ensuring Consistency & Safety

Smooth, predictable closing was critical to avoid component damage. The client specified a target closing time that matched the PR-T118’s factory-tested performance: during outbound inspection, the damper delivers a closing time of 10±4 seconds when tested from 70° to 0° (after opening to 110°). We walked them through the testing method to confirm it aligned with their quality checks—no surprises, just clarity.

Durability: Built to Last Through Heavy Use

The client’s product would see frequent use, so we focused on the PR-T118’s rigorous durability standards:

  • 30,000-cycle endurance test: After 30,000 full cycles (110° forward + 110° reverse rotation), the PR-T1188A still maintains a closing time of ≥3 seconds—far exceeding the client’s expected usage volume.
  • Forced endurance test: Even under intense conditions (reciprocating 110° to 0° in <3 seconds per cycle), the damper lasts 3,000 cycles and retains performance after a 24-hour rest.

This reassured the client the PR-T118 wouldn’t wear out prematurely—a key pain point they’d faced with previous dampers.

Step 2: Aligning Installation & Environmental Needs

Great technical specs mean nothing if a product doesn’t fit or adapt to the client’s environment. We worked with them to address two critical factors:

Installation Precision: Angle References & Safety Margins

The client needed the damper to integrate seamlessly with their existing assembly. The PR-T118’s clear angle references simplified this:

  • A 0° reference point (when the rotating shaft’s flattened position “A” aligns with the housing’s mounting hole position “B”) ensured consistent installation across every unit.
  • 5° safety margin angles at both open and closed positions (with a maximum 110° rotation angle) prevented over-rotation—protecting both the damper and the client’s component.

We shared detailed (outline drawings) to confirm mounting dimensions (like key measurements for housing and shaft alignment) fit their design—no last-minute reworks needed.

Temperature Resilience: Adaptable to Real-World Conditions

The client’s product would be stored in varying climates, so we highlighted the PR-T118’s temperature ranges:

  • Recommended operating temp: -5 to 50°C—perfect for their indoor/outdoor use cases.
  • Storage temp: -20 to 80°C—safe for shipping and warehousing without performance loss.

This eliminated concerns about the damper failing in extreme heat or cold.

Step 3: Finalizing Quality & Compliance Checks

Before moving forward, we confirmed the PR-T118 met the client’s quality standards:

  • Appearance: The damper is non-cosmetic but free of damage and oil stains—critical for their assembly’s cleanliness requirements.
  • Tolerances: Unspecified tolerances follow GB/T14486-2008 MT5 grade—aligning with their global manufacturing standards.

By the end of our collaboration, the client had a damper that checked every box: technical fit, durability, and ease of integration.

Why This Partnership Worked: Listening First, Solving Second

The PR-T118 wasn’t just a “product we sold”—it was a solution we co-created by:

  1. Listening to their pain points (not just listing specs).
  2. Translating needs into technical matches (e.g., CW/CCW torque, durability cycles).
  3. Providing clarity (test methods, installation guides, temperature ranges) to eliminate risk.

For any business needing precision motion control, the PR-T118 stands out—but the real value comes from partnering to ensure it fits your unique project.

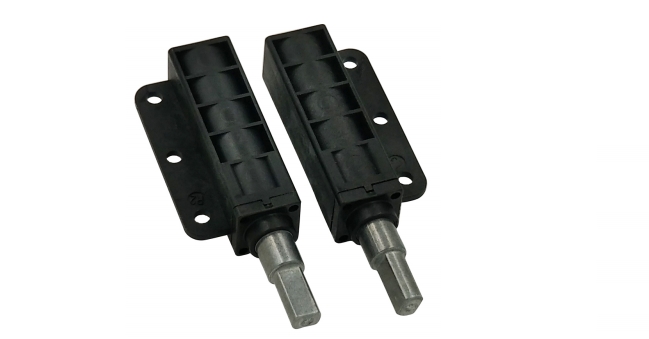

PR-T118 Rotary Dampers Installation Reference
The PR-T118’s 0° reference point (flattened shaft position A + housing mounting hole B) for precise installation

PR-T118 Torque & Cycle Test Results
Endurance test results showing consistent closing time after 30,000 cycles

PR-T118 Temperature Range Chart
The PR-T118’s temperature resilience (-20°C to 80°C storage, -5°C to 50°C operating)
