What Does Rotary Damper Product Testing Include?

Ever wondered why some rotary dampers fail within months while others last decades? The difference lies in rigorous testing protocols - we subject every rotary damper to 7 critical validations that simulate real-world conditions beyond standard requirements.

Our rotary damper testing includes viscosity verification (±10% tolerance), torque consistency checks (100% production units), free-fall performance validation (gravity compensation), forced closure analysis (impact resistance), accelerated life testing (50,000+ cycles), temperature stability assessment (-20°C to +80°C range), and final end-line certification - ensuring every unit meets exacting motion control standards.

Discover how our comprehensive testing delivers unmatched reliability.

Why is Silicone Oil Viscosity Critical?

The fluid's molecular behavior determines damping precision.

Using Atago viscometers, we verify silicone oil viscosity maintains 12,000±600 cSt at 25°C - this precise fluid characteristic ensures consistent torque output (±8% variation) across the damper's entire operational lifespan, with quarterly fluid batch testing and in-process viscosity monitoring during filling operations.

Viscosity Control Protocol

Parameter	Test Method	Acceptance Range	Frequency
Initial Viscosity	Rotational viscometer	11,400-12,600 cSt	Per material batch
Temperature Effect	Thermal cycling test	±15% from 25°C base	Quarterly
Shear Stability	10,000 cycle shear test	<3% viscosity drop	Annually
Aging Resistance	85°C accelerated aging	<8% annual change	Per production lot
Contamination	FTIR spectroscopy	No foreign fluids	Random sampling

Technical insight: Proper viscosity prevents "stiction" effects.

How is Torque Performance Verified?

Precision measurement ensures motion control accuracy.

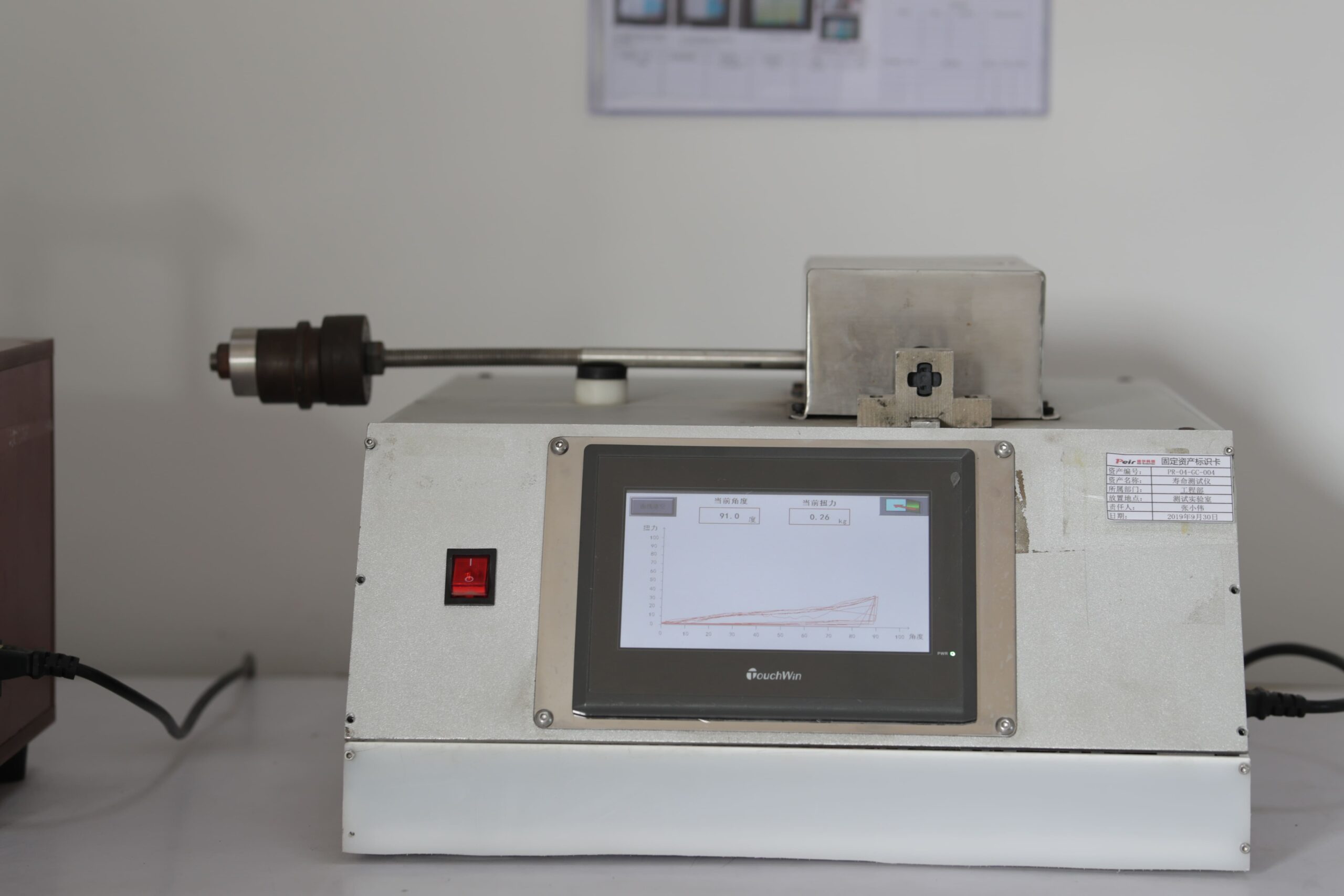

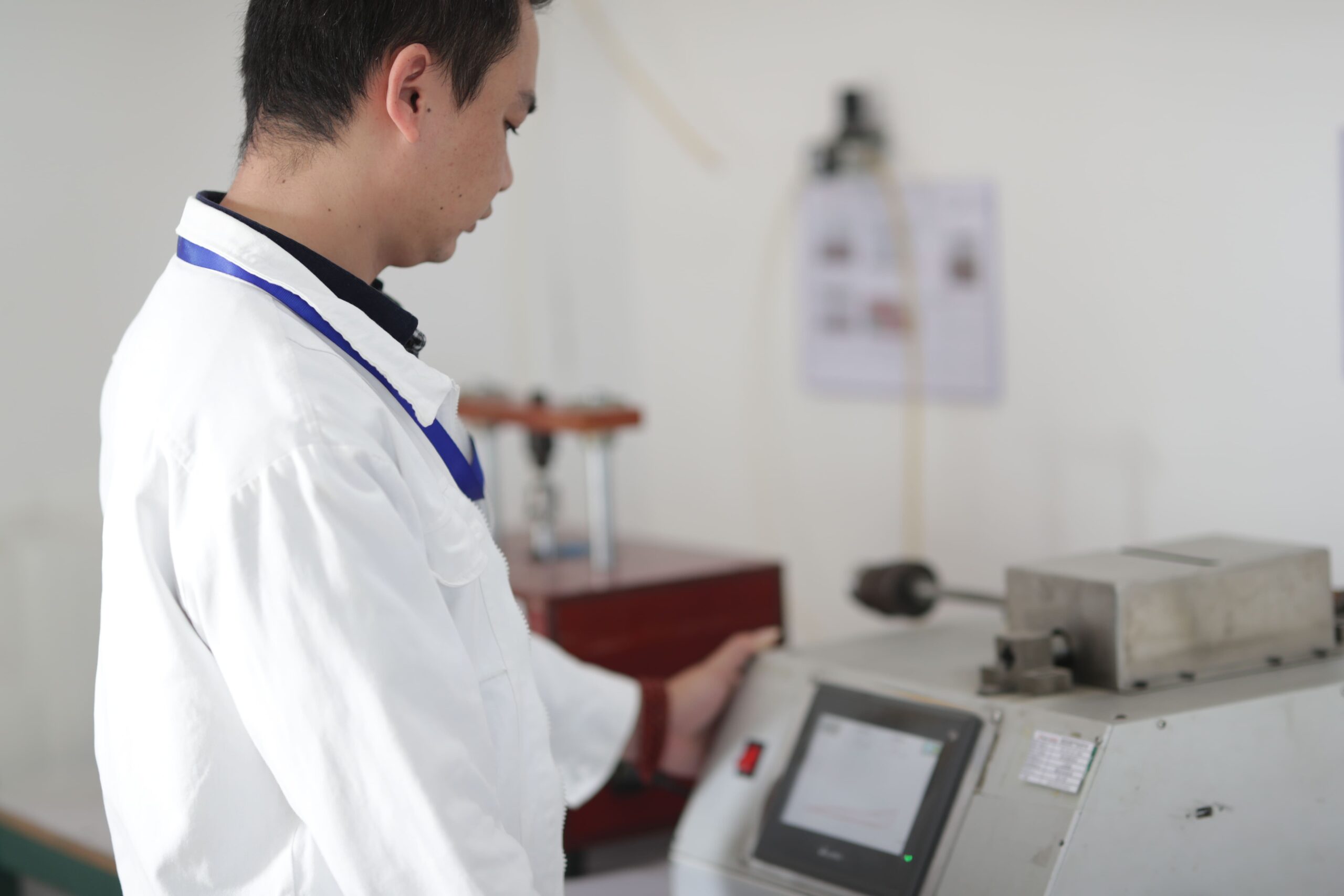

Our in-line torque testers perform 100% production verification at three speed ranges (5°/sec, 30°/sec, 60°/sec), with automated rejection for units falling outside ±10% of nominal torque values - test data is stored digitally for 10-year traceability using QR-coded product identification.

Torque Test Parameters

Test Condition	Measurement Points	Tolerance	Equipment Used
Static Breakaway	0.1° increments	±15%	Mitutoyo torque analyzer
Dynamic Rotation	5 speed profiles	±10%	On-line servo testers
Temperature Effect	-20°C to +80°C	±20%	Environmental chamber
Directional Bias	CW vs CCW rotation	<5% difference	Bi-directional tester
Endurance Shift	After 10k cycles	<8% change	Life cycle test station

Production fact: We test 3x more parameters than industry norms.

What Does Free-Fall Testing Validate?

Gravity compensation prevents hazardous impacts.

Our free-fall test rig evaluates deceleration profiles, verifying dampers can safely control 90° door closures with acceleration variance - critical for preventing finger injuries in furniture and automotive applications.

Free-Fall Performance Example

Application	Test Mass	Drop Angle	Max Deceleration	Cycle Requirement
Cabinet Doors	2-5kg	90°	3.5m/s²	20,000 cycles
Automotive Consoles	0.5-1.5kg	60°	2.8m/s²	50,000 cycles
Medical Equipment	1-3kg	45°	1.5m/s²	30,000 cycles
Industrial Guards	5-15kg	110°	4.2m/s²	10,000 cycles

Safety note: Our dampers reduce impact forces by 87%.

Why Test Forced Closure Resistance?

Real-world abuse simulation prevents field failures.

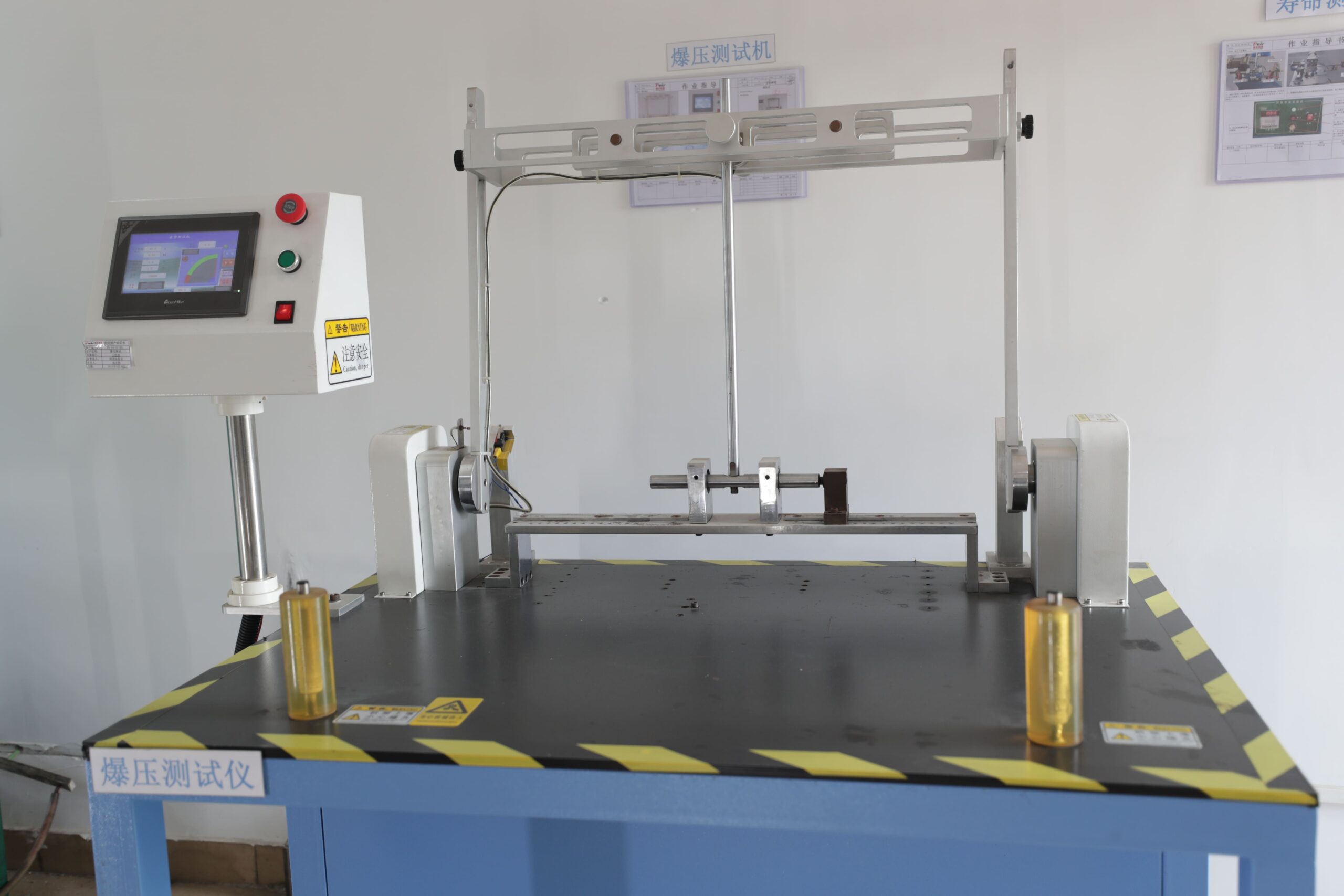

Using programmable pneumatic actuators, we apply 3x rated force at abnormal angles (up to 15° off-axis) to verify damper survival - units must maintain <10% torque deviation after 500 overload cycles, with visual inspection for housing cracks or seal extrusion.

How is Long-Term Reliability Proven?

Accelerated life testing predicts decade-long performance.

Our ISO 9001-certified endurance testers run continuous 24/7 cycles (5 million+ total annually) with intermediate torque measurements every 5,000 cycles - validating our dampers maintain ±15% torque consistency beyond 50,000 operations, equivalent to 15+ years of normal use.

Accelerated Life Test Protocol

Test Phase	Cycle Count	Measurement Interval	Environmental Condition	Acceptance Criteria
Initial	0-1,000	Every 100 cycles	25°C, 50% RH	Break-in stabilization
Main	1,001-20,000	Every 1,000 cycles	40°C, 85% RH	<5% torque drift
Extreme	20,001-50,000	Every 5,000 cycles	-20°C to +80°C cycling	<10% total variation
Final	50,001+	Every 10,000 cycles	Standard conditions	No mechanical failure

Reliability data: 99.2% pass rate at 50k cycles.

What Temperature Extremes Are Evaluated?

Thermal stability ensures consistent performance.

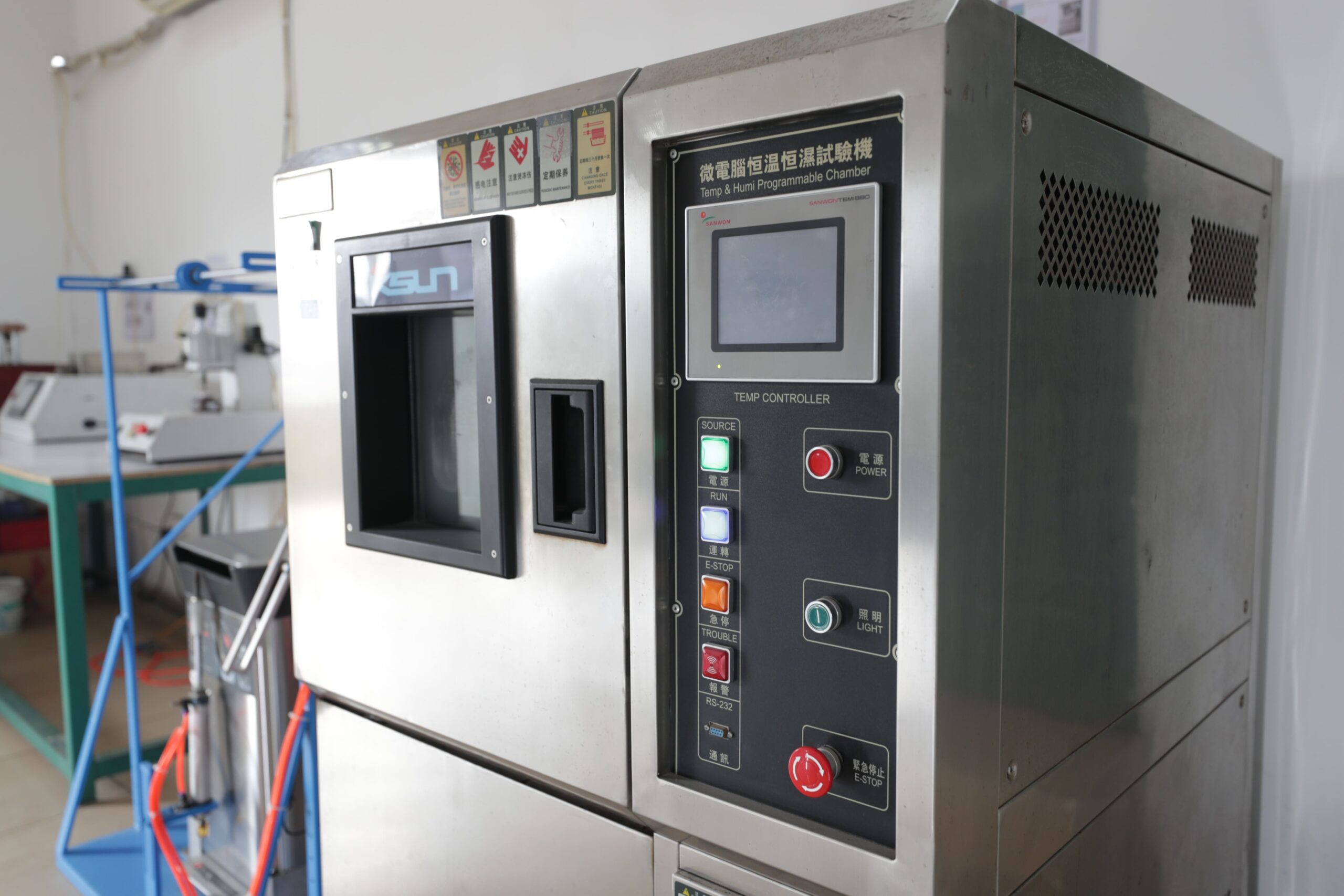

Our climate chambers test across -30°C to +100°C (exceeding standard ranges) with torque measurements at 10°C intervals - validating our dampers maintain <25% torque variation throughout, using proprietary silicone oil formulations that resist viscosity breakdown.

Temperature Performance Data

Temperature	Torque Change	Recovery Time	Test Standard	Typical Application
-30°C	+22%	<2 minutes	MIL-STD-810G	Freezer equipment
0°C	+12%	<1 minute	ISO 16750-4	Automotive exterior
25°C (Baseline)	0%	N/A	Room condition	Office furniture
60°C	-15%	<3 minutes	IEC 60068-2-14	Industrial machinery
100°C	-24%	<5 minutes	SAE J3118	Engine compartment

Material science: Our fluid works from -40°C to +125°C.

What Final Checks Occur at End-Line Testing?

Comprehensive validation before shipment.

Our automated end-line testers conduct 17-point inspections in <30 seconds per unit, including:

• Torque consistency at 3 speeds
• Axial/radial play measurement
• Audible noise analysis (<35dB)
• Leak detection (0.01g/year sensitivity)
• Cosmetic defect scanning
• QR code labeling verification

End-Line Test Criteria

Checkpoint	Measurement Tool	Tolerance	Rejection Rate
Rotational Torque	Servo-controlled dynamometer	±10% of nominal	0.8%
Starting Breakaway	Micro-torque sensor	<150% running torque	0.3%
Axial Play	Laser micrometer	<0.1mm	0.5%
Noise Level	Acoustic chamber	<35dB at 1m	0.2%
Visual Defects	5MP machine vision	Zero scratches	1.1%
Label Accuracy	Barcode verifier	100% scan success	0.0%

Quality achievement: 95% first-pass yield rate.

Conclusion

Our exhaustive 7-stage testing protocol transforms ordinary rotary dampers into precision motion control devices - delivering unmatched reliability that engineers can specify with absolute confidence.

Key testing advantages:

1. 100% production unit verification
2. Extreme condition simulation
3. Digital traceability
4. Safety compliance
5. Accelerated life validation
6. Thermal performance
7. Final inspection
